螺纹 Thread |
编号
P/N
|

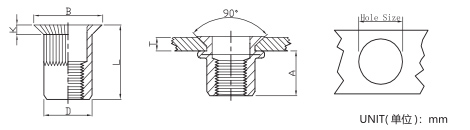

T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
| M3 | CK-KB-0325 | 1.5-2.5 | 4.5 | 5.0 | 4.9 | 7.5 | 1.5 | 8.5 |
| CK-KB-0340 | 2.5-4.0 | 10.5 | ||||||
| M4 | CK-KB-0430 | 1.5-3.0 | 6.5 | 6.0 | 5.9 | 9.0 | 1.5 | 12.0 |
| CK-KB-0450 | 3.5-5.0 | 13.0 | ||||||
| M5 | CK-KB-0535 | 1.5-3.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.5 | 13.0 |
| CK-KB-0550 | 3.0-5.0 | 15.0 | ||||||
| M6 | CK-KB-0640 | 1.5-4.0 | 9.0 | 9.0 | 8.9 | 12.0 | 1.5 | 15.5 |
| CK-KB-0660 | 4.0-6.0 | 17.0 | ||||||
| M8 | CK-KB-0845 | 2.0-4.5 | 11.0 | 11.0 | 10.9 | 14.0 | 1.5 | 18.5 |
| CK-KB-0860 | 4.5-6.0 | 19.0 | ||||||
| M10 | CK-KB-1050 | 2.0-5.0 | 13.0 | 13.0 | 12.9 | 16.0 | 1.5 | 21.0 |
| CK-KB-1065 | 3.5-6.5 | 24.0 | ||||||
| M12 | CK-KB-1250(16H) | 2.0-5.0 | 16.5 | 16.0 | 15.9 | 19.0 | 1.5 | 24.0 |
| CK-KB-1270(16H) | 5.0-7.0 | 24.0 |
